d line Euro Mortise Keyed Entry Sash Lock

The Euro Mortise Keyed Entry Sash Lock by d line is a Euro-profile mortise lock from the Knud Holscher collection, crafted in AISI 316 stainless steel. Features a built-in dual mechanism combining a regular latch to close the door and a deadbolt for security. Paired with a CES key cylinder and locking turn for secure keyed entry.

Includes a lever set and Euro profile cylinder escutcheon (available in round or square). Compatible with both sprung and most unsprung lever door hardware. Made in Europe.

Specifications

• Dimensions: W 24 mm (0.9") x H 235 mm (9.2") x D 88 mm (3.4")
• Part Shape: Round or Square
• Backset: 60 mm
• Centres: 78 mm
• Spindle range: 33–111 mm door thicknesses. For larger doors, contact us

Materials

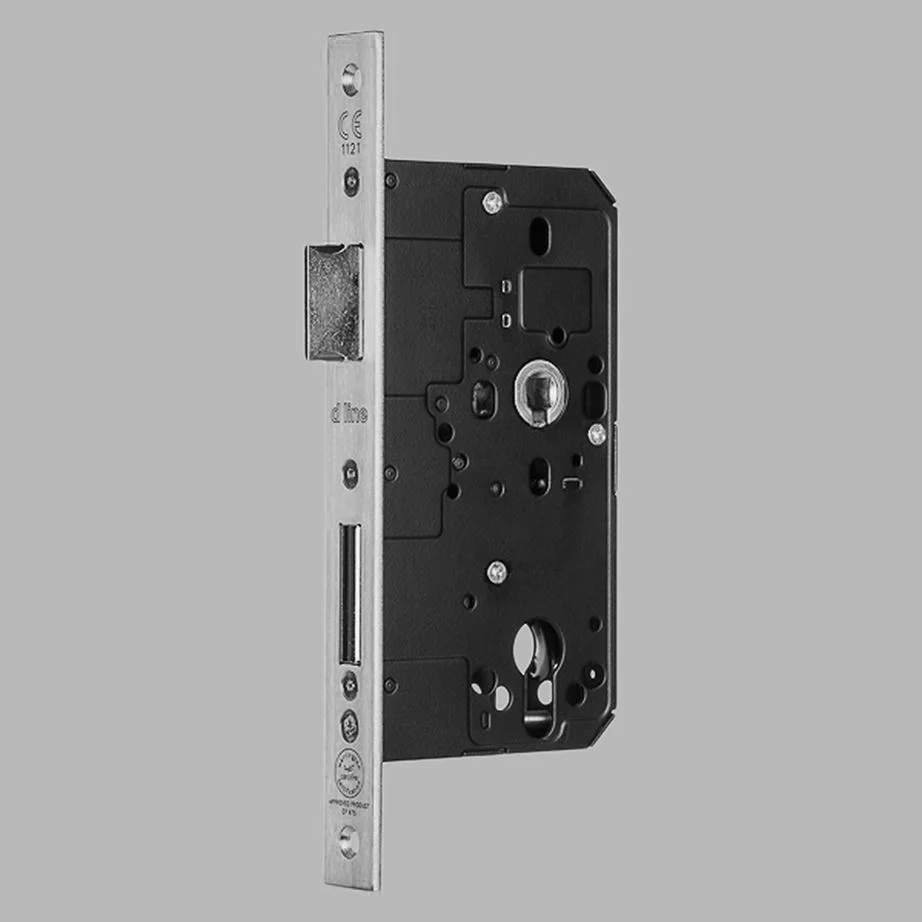

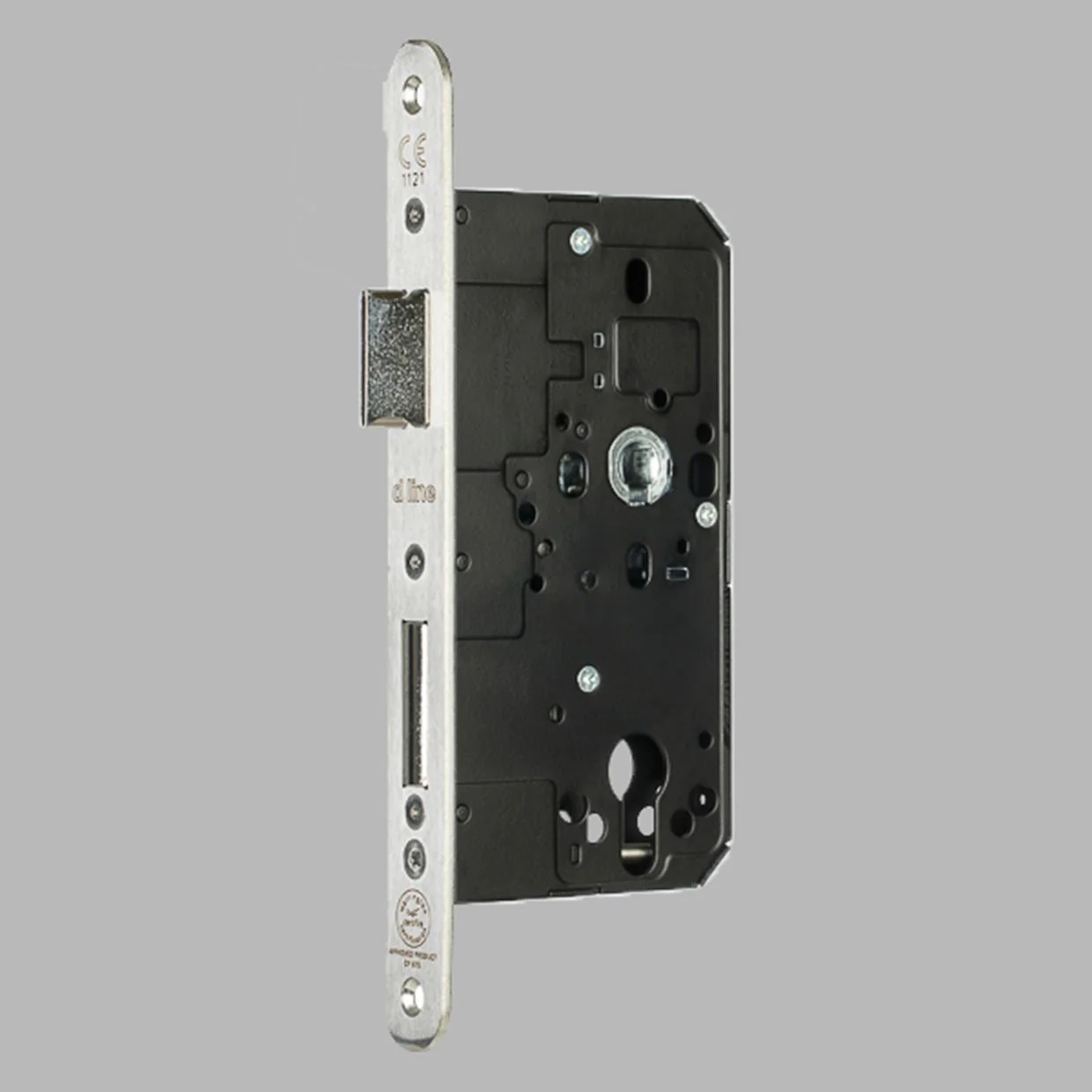

Stainless steel (AISI 304). Standard finish: Satin Stainless Steel (Grain 320).

Additional Finishes (Available Upon Request)

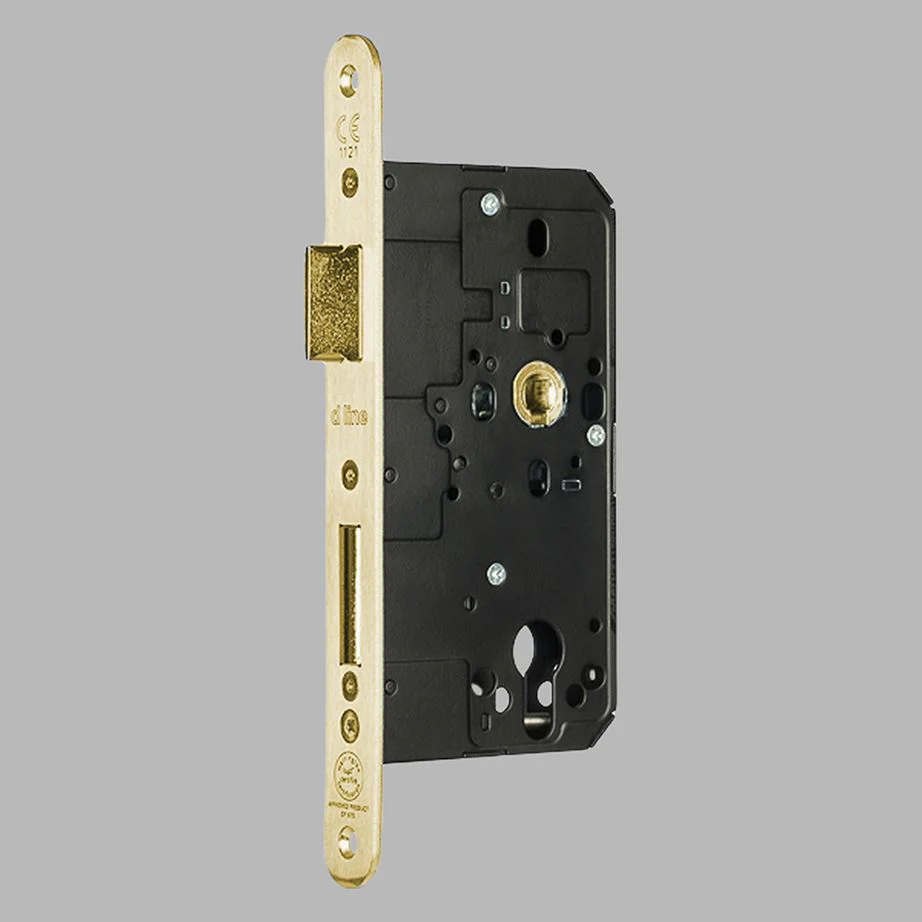

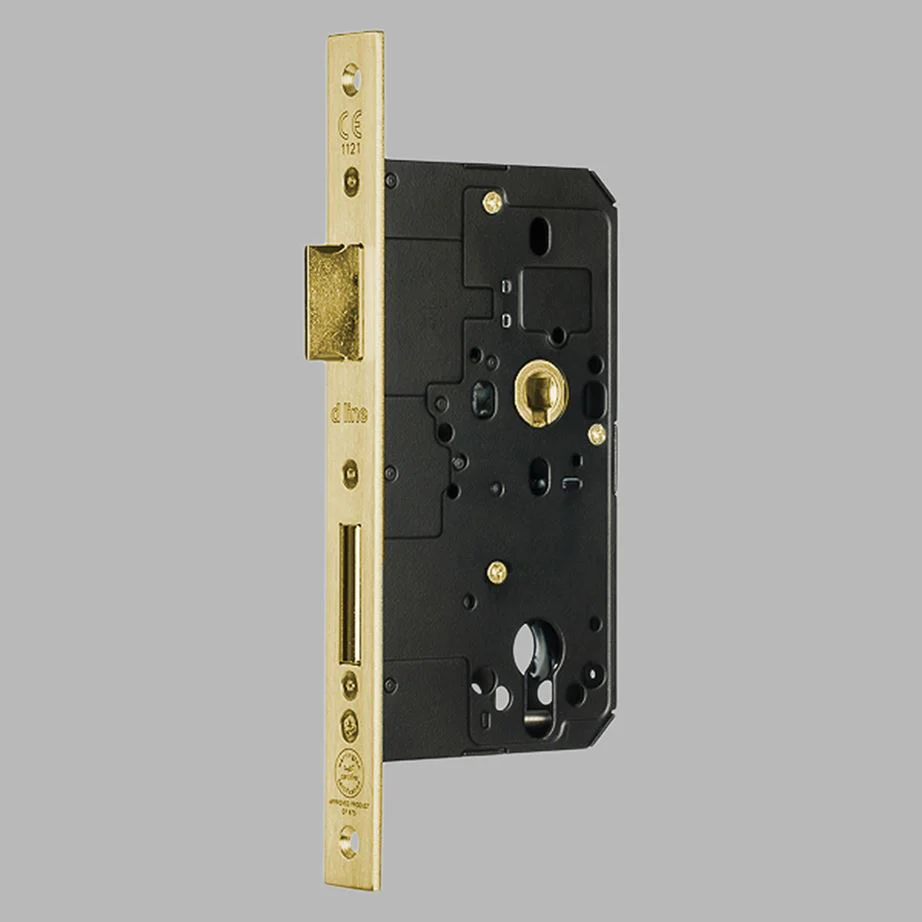

• PVD Satin Brass
• PVD Satin Bronze

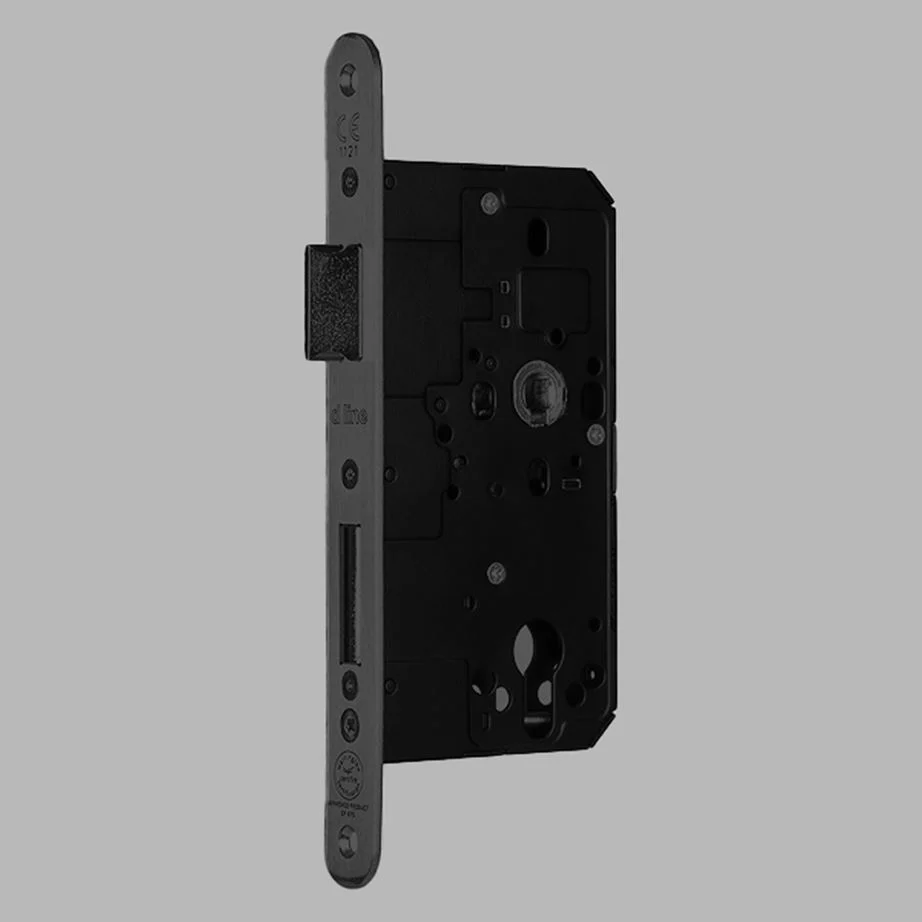

• PVD Satin Black
• Polished versions
• X-BAC antimicrobial coating

Product Downloads

• Data Sheet — 60 mm, Square (PDF)
• Data Sheet — 60 mm, Round (PDF)
• d line Material Maintenance Guide (PDF)
• Keyed Entry Sashlock Spec Sheet (PDF)
• Euro Mortise Mounting Instructions (PDF)
