HB 530 Handrail Bracket

The HB 530 Handrail Bracket by Halliday Baillie is machined from solid 316 stainless steel — suitable for exterior, marine, and corrosion-prone applications. Provides a minimal visual rest for wooden round or square handrails. Cylindrical design integrates into a variety of settings. Made in New Zealand.

For alternate finishes, see the HB 540 Handrail Bracket.

Specifications

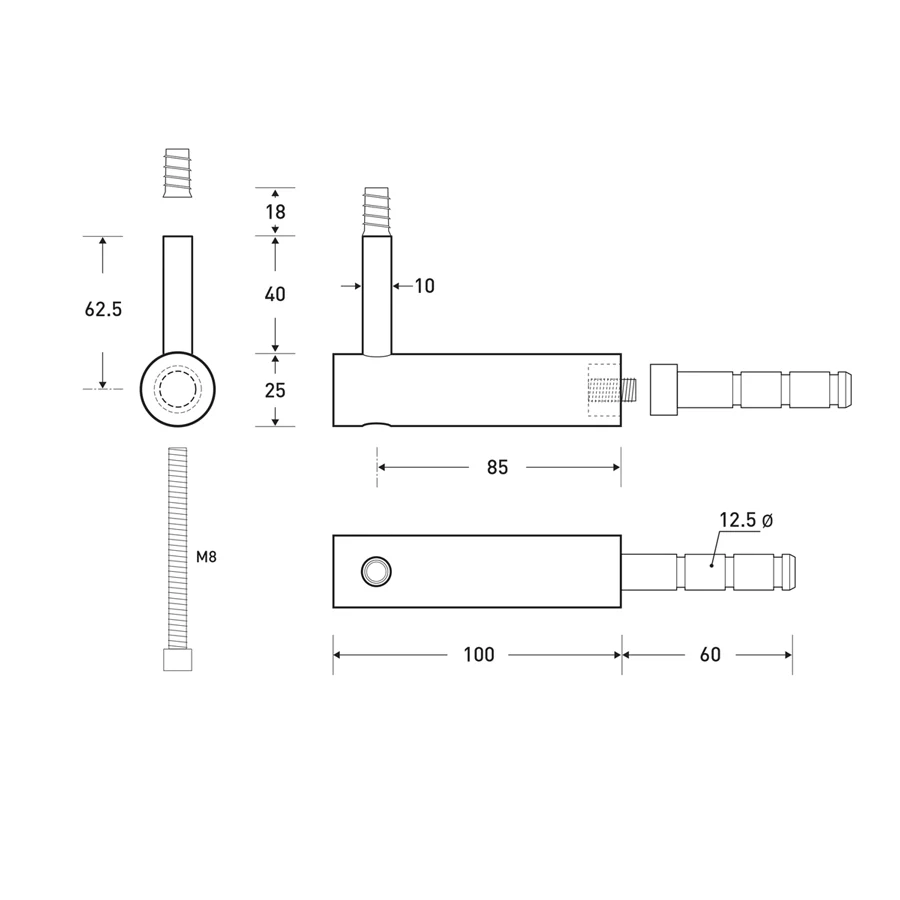

• Dimensions: L 100 mm (4") x H 25 + 40 mm (1" + 1.6") x W Ø 25 mm (1")
• Maximum spacing: 800 mm (31.50")
• All fasteners included. Epoxy sold separately.

Optional: Glass Fixing Kit 533 for HB 530 (for exterior installations on glass or other panel materials).

Materials

Solid grade 316 stainless steel with stainless steel fasteners.

Product Downloads

• HB 530 Spec Sheet (PDF)
