Sugatsune Concealed Hinge

The Sugatsune Concealed Hinge by Sugatsune is a 3-way adjustable concealed door hinge — allowing vertical, horizontal, and depth adjustment after installation. Opens 180 degrees. Tested to 300,000 open/close cycles. The ultimate invisible hinge for flush-to-wall doors.

Specifications

• HES3D E190 Standard
• Max door: H 2400 mm (94-1/2") x W 900 mm (35-7/16")
• Max weight: 100 kg (220 lbs) with 2 hinges, 125 kg (275 lbs) with 3 hinges
• HES3D W190 Wide Throw
• Wide-throw version for thicker jambs or casing
• 3-way adjustment: vertical, horizontal, and depth
• Opening: 180 degrees
• Cycle tests: 300,000 open/close

Materials

Zinc alloy and aluminum.

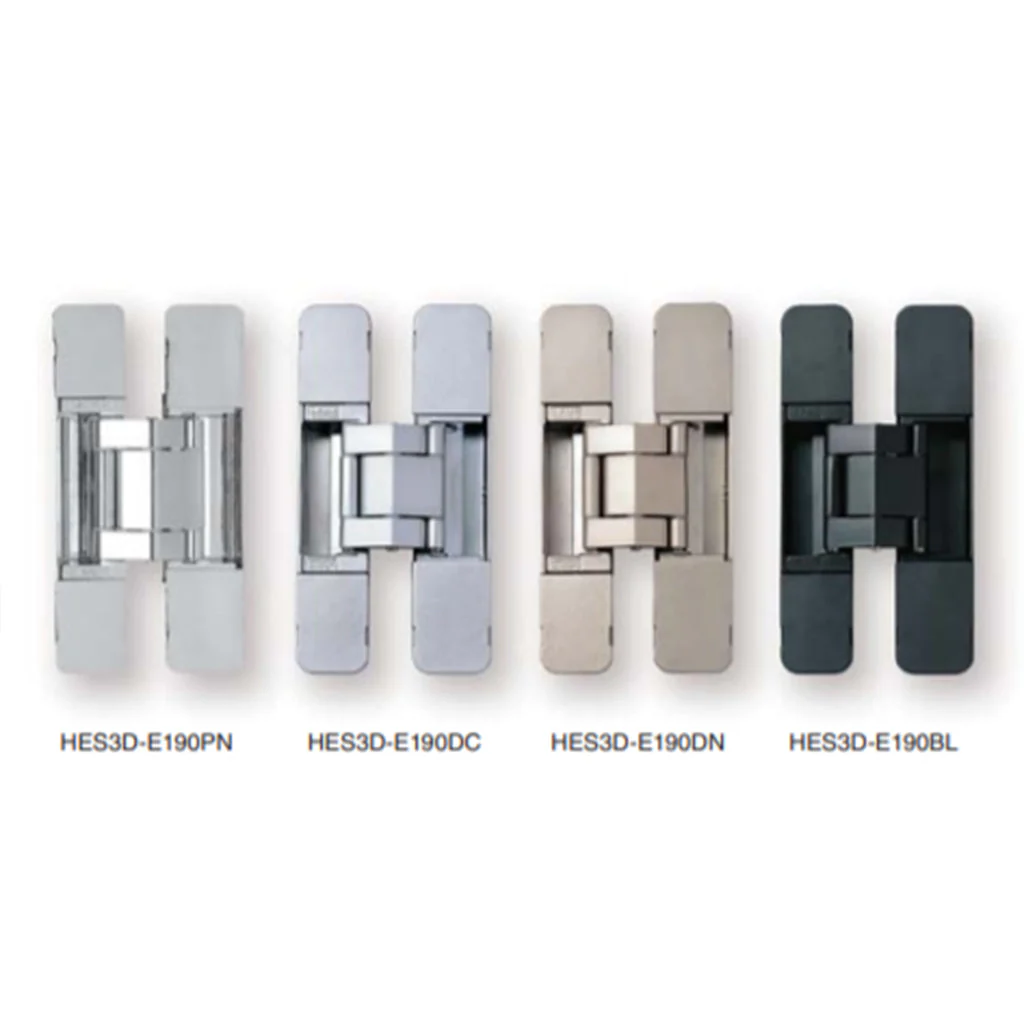

Available Finishes

• Matte Black
• Dull Chrome
• Dull Nickel
• Polished Nickel

Video Overview

Product Downloads

Product Sheets

• HES3D E190 Product Sheet
• HES3D Concealed Hinge Product Sheet
• HES3D Concealed Hinge Template
• Additional Components

Installation & Care

• HES3D Installation Instructions

Other

• HES3D Concealed Hinge Drawing
