HB 520 Handrail Bracket
The HB 520 Handrail Bracket by Halliday Baillie is a minimal cylindrical handrail bracket that integrates into a variety of design settings. For exterior and marine applications or where corrosion resistance is desired, see the HB 530 in solid stainless steel.
Specifications

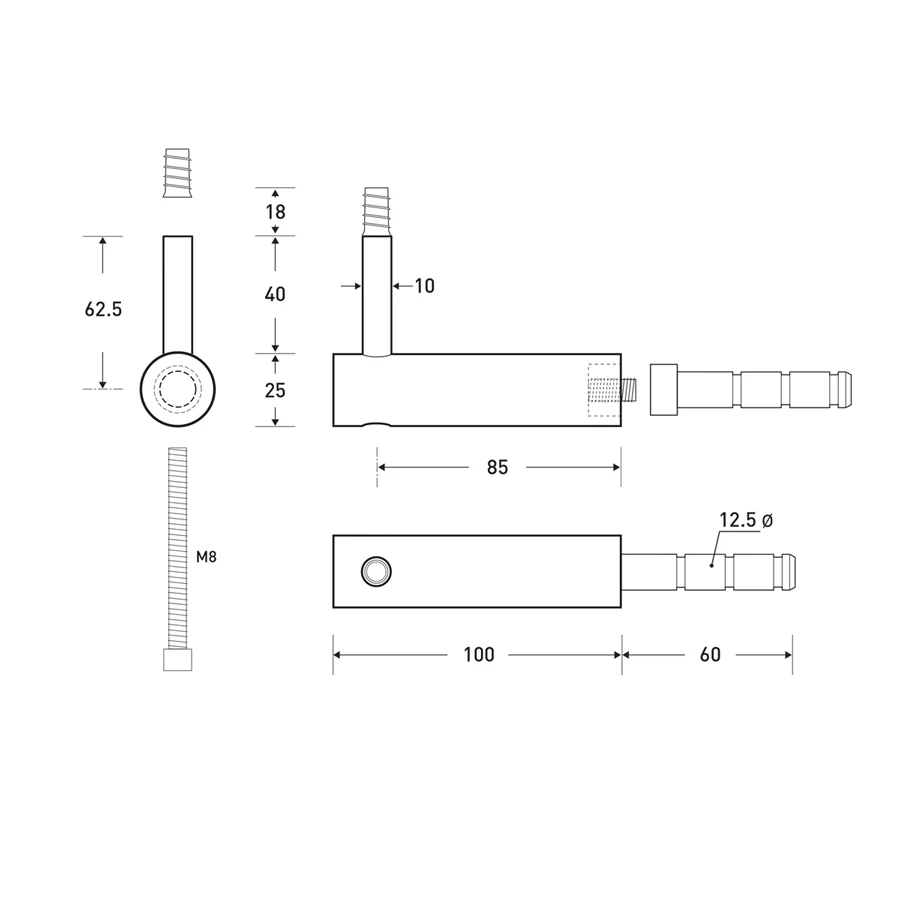

- L 100 mm (4") x H 25 + 40 mm (1" + 1.6") x W 25 mm dia. (1")
- Maximum spacing: 800 mm (31.50")
- All fasteners included; epoxy sold separately
Optional Accessories
- Glass Fixing Kit 522 for HB 520 ā for installations on glass or other panel material, sold separately
Materials
Non-anodized aluminum alloy.
Available Finishes
- Satin Chrome
- Polished Chrome
- Matte White
- Gloss White
- Satin Nickel
- Black
- Electro Black ACE
Custom finishes available upon request.
Product Downloads
Original: $190.06
-65%$190.06
$66.52Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The HB 520 Handrail Bracket by Halliday Baillie is a minimal cylindrical handrail bracket that integrates into a variety of design settings. For exterior and marine applications or where corrosion resistance is desired, see the HB 530 in solid stainless steel.
Specifications
- L 100 mm (4") x H 25 + 40 mm (1" + 1.6") x W 25 mm dia. (1")
- Maximum spacing: 800 mm (31.50")
- All fasteners included; epoxy sold separately
Optional Accessories
- Glass Fixing Kit 522 for HB 520 ā for installations on glass or other panel material, sold separately
Materials
Non-anodized aluminum alloy.
Available Finishes
- Satin Chrome
- Polished Chrome
- Matte White
- Gloss White
- Satin Nickel
- Black
- Electro Black ACE
Custom finishes available upon request.
